51/238 page 25

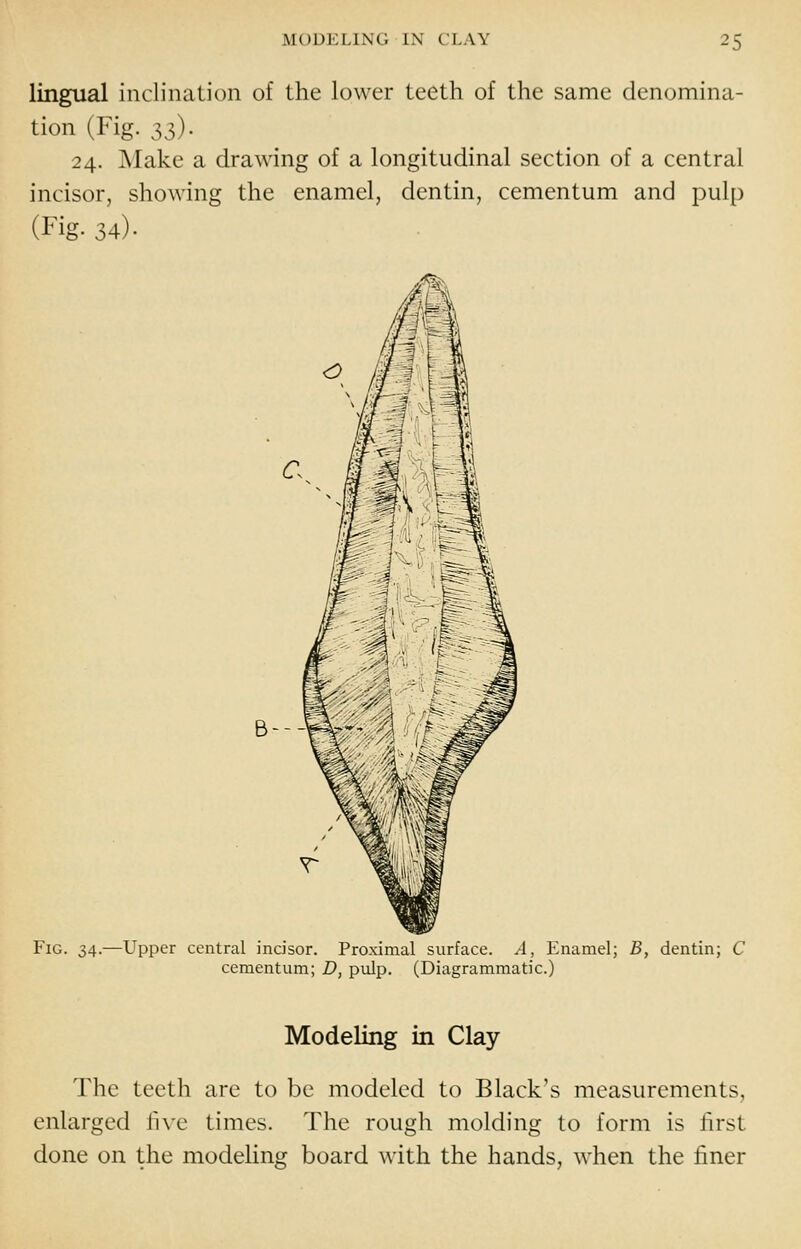

$lingual inclination of the lower teeth of the same denomina- tion (Fig. ss)- 24. ]\Iake a drawing of a longitudinal section of a central incisor, showing the enamel, dentin, cementum and pulp (Fig. 34). B--J Fig. 34.—Upper central incisor. Proximal surface. A, Enamel; B, dentin; C cementum; D, pulp. (Diagrammatic.) Modeling in Clay The teeth are to be modeled to Black's measurements, enlarged li\'e times. The rough molding to form is first done on the modeling board with the hands, when the finer$
