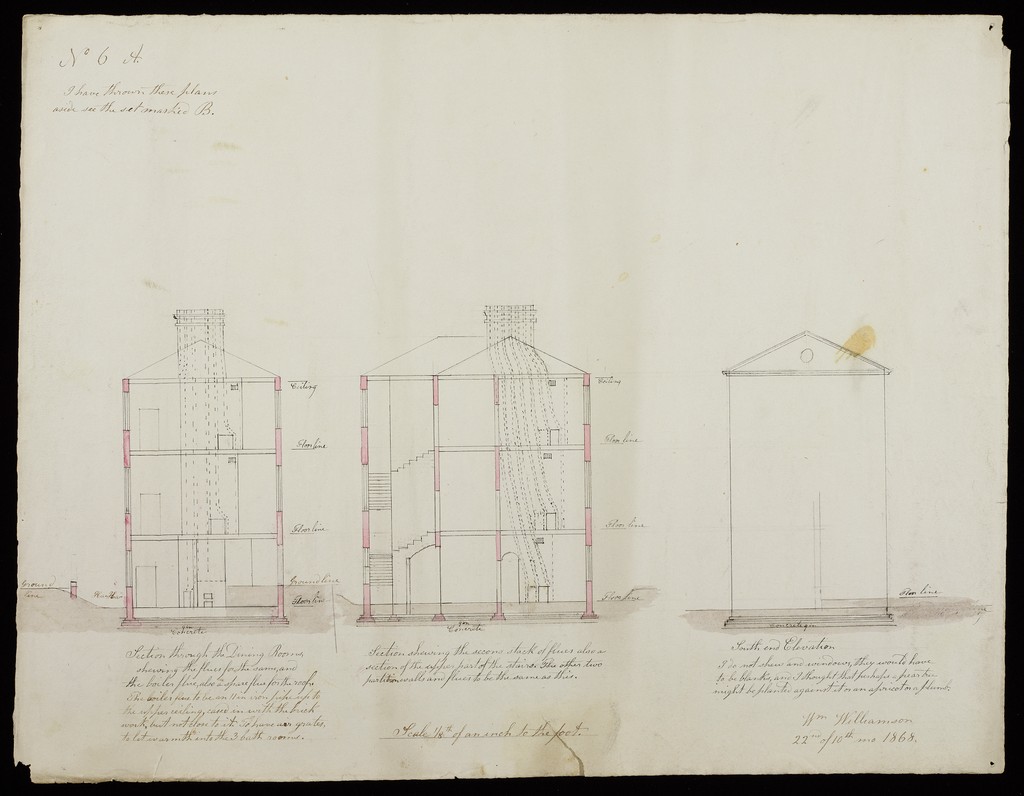

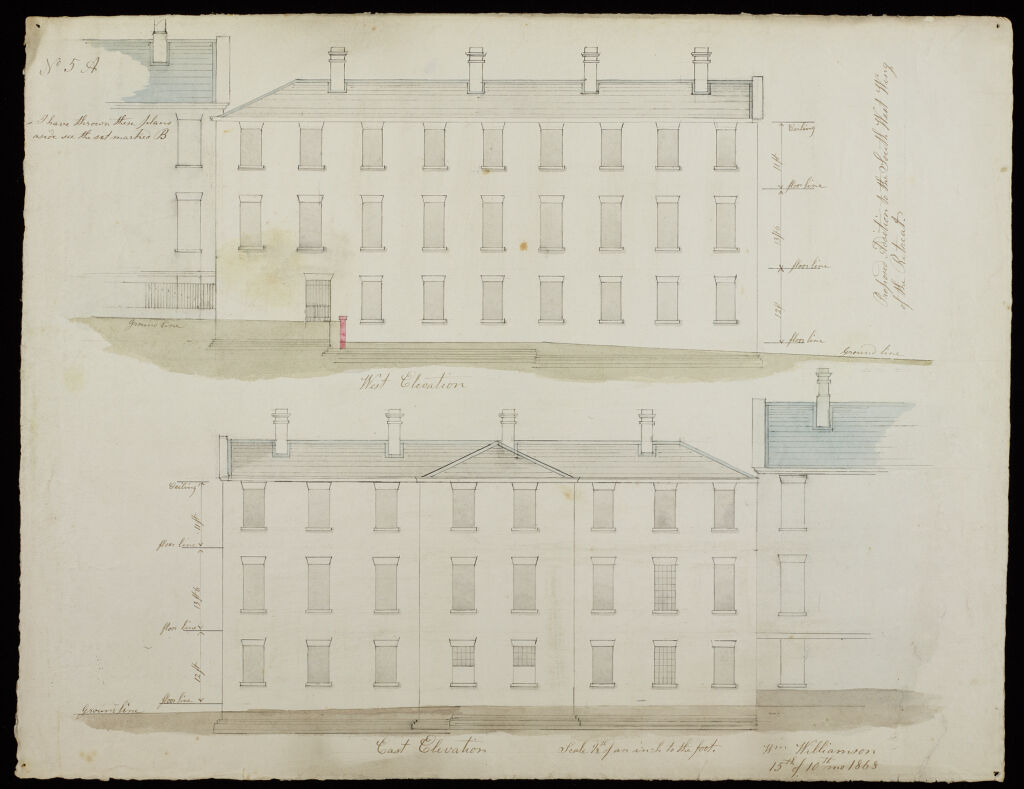

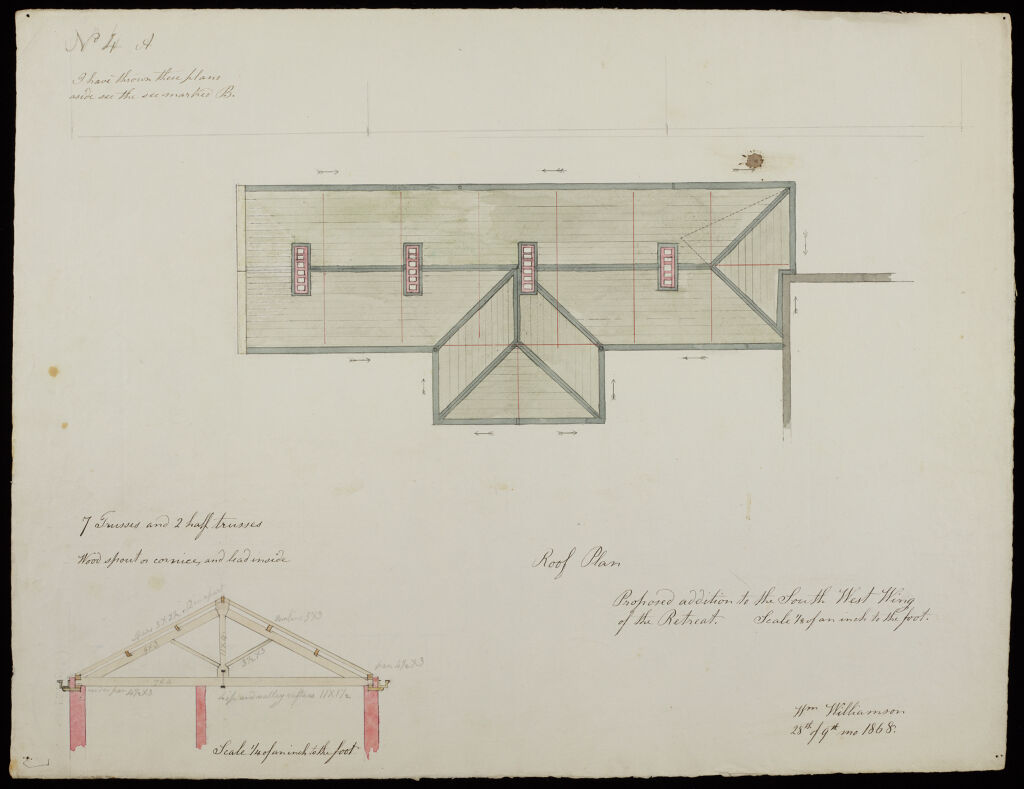

These are coloured plans and drawings, and comprise the following: 1.	Basement Plan 2.	Ground floor plan 3.	First Floor or Chamber plan 4.	Roof plan 5.	West and East elevations 6.	Sections and South end elevation It is noted on this set that these were discarded because they encroached too much into the women's court and would 'prevent the wind having sufficient play'.

Proposed addition to the South West Wing, Plans Set A , by William Williamson
