Paralyses : cerebral bulbar and spinal: a manual of diagnosis for students and practitioners.
- Henry Charlton Bastian
- Date:
- 1886
Licence: Public Domain Mark
Credit: Paralyses : cerebral bulbar and spinal: a manual of diagnosis for students and practitioners. Source: Wellcome Collection.
Provider: This material has been provided by UCL Library Services. The original may be consulted at UCL (University College London)
33/732 page 13

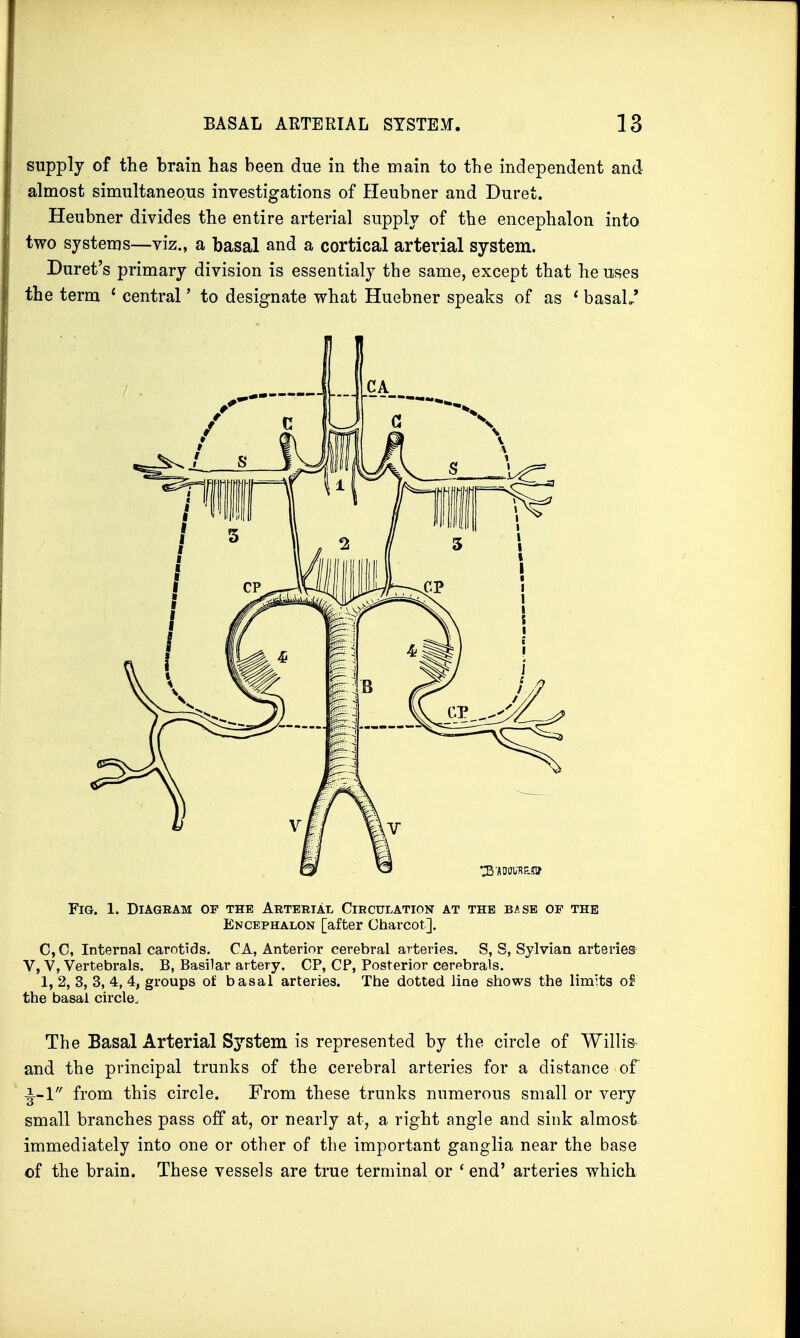

![supply of the brain has been due in the main to the independent and almost simultaneous investigations of Heubner and Duret. Heubner divides the entire arterial supply of the encephalon into two systems—viz., a basal and a cortical arterial system. Duret's primary division is essentialy the same, except that he uses the term 1 central' to designate what Huebner speaks of as 1 basaL' CA Fig. 1. Diagram of the ArteriAl Circulation at the base of the Encephalon [after Charcot]. C,C, Internal carotids. CA, Anterior cerebral arteries. S, S, Sylvian arteries4 V, V, Vertebrals. B, Basilar artery. CP, CP, Posterior cerebrals. 1, 2, 3, 3, 4, 4, groups of basal arteries. The dotted line shows the limits of the basal circle, The Basal Arterial System is represented by the circle of Willis- and the principal trunks of the cerebral arteries for a distance of from this circle. From these trunks numerous small or very small branches pass off at, or nearly at, a right angle and sink almost immediately into one or other of the important ganglia near the base of the brain. These vessels are true terminal or ' end' arteries which](https://iiif.wellcomecollection.org/image/b21270478_0033.jp2/full/800%2C/0/default.jpg)
