A manual of physiology : for the use of junior students of medicine / by Gerald F. Yeo.
- Date:
- 1884
Licence: Public Domain Mark
Credit: A manual of physiology : for the use of junior students of medicine / by Gerald F. Yeo. Source: Wellcome Collection.
Provider: This material has been provided by the Royal College of Physicians of Edinburgh. The original may be consulted at the Royal College of Physicians of Edinburgh.
52/676 page 28

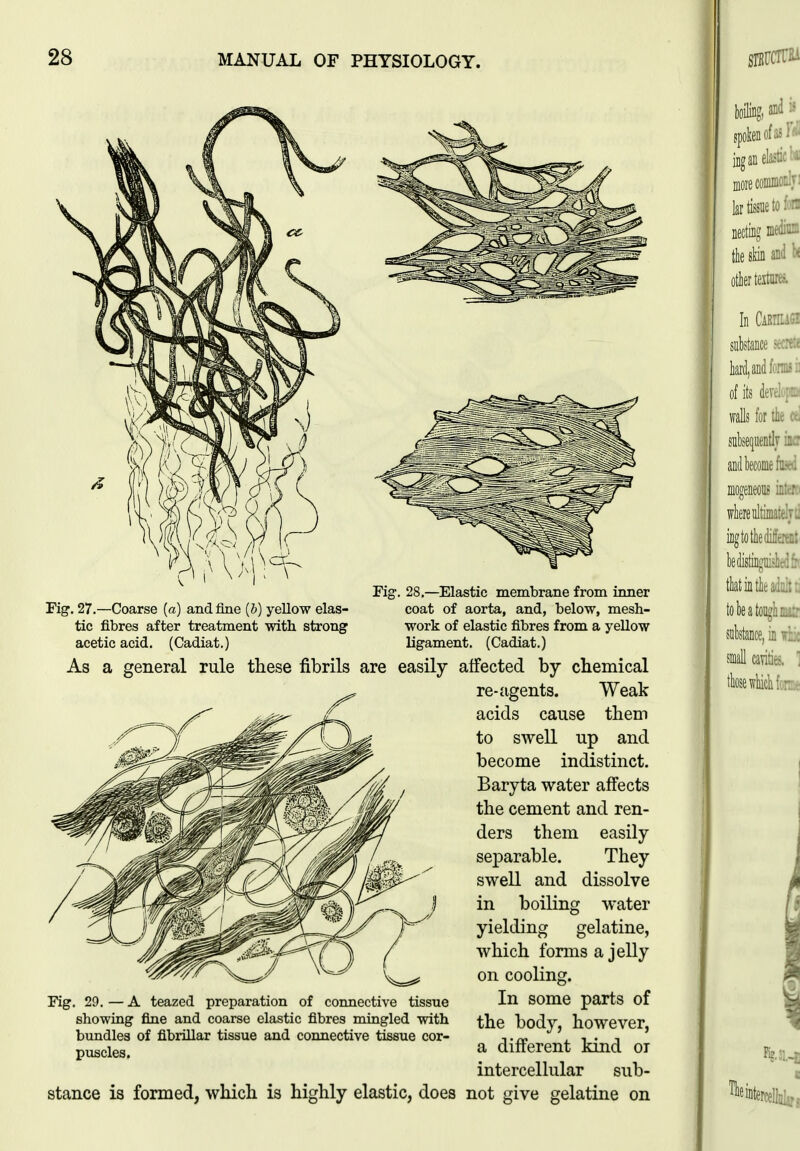

![Fig. 27.—Coarse [a) and fine [b] yellow elas- tic fibres after treatment with strong acetic acid. (Cadiat.) Fig. 28.—Elastic membrane from inner coat of aorta, and, below, mesh- work of elastic fibres from a yellow ligament. (Cadiat.) As a general rule these fibrils are easily affected by chemical re-agents. Weak acids cause them to swell up and become indistinct. Baryta water affects the cement and ren- ders them easily se]Darable. They swell and dissolve in boiling water yielding gelatine, which forms a jelly on cooling. In some parts of the body, however, a different kind oi intercellular sub- stance is formed, which is highly elastic, does not give gelatine on Fig. 29.—A teazed preparation of connective tissue showing fine and coarse elastic fibres mingled with bundles of fibrillar tissue and connective tissue cor- puscles.](https://iiif.wellcomecollection.org/image/b21932943_0052.jp2/full/800%2C/0/default.jpg)
