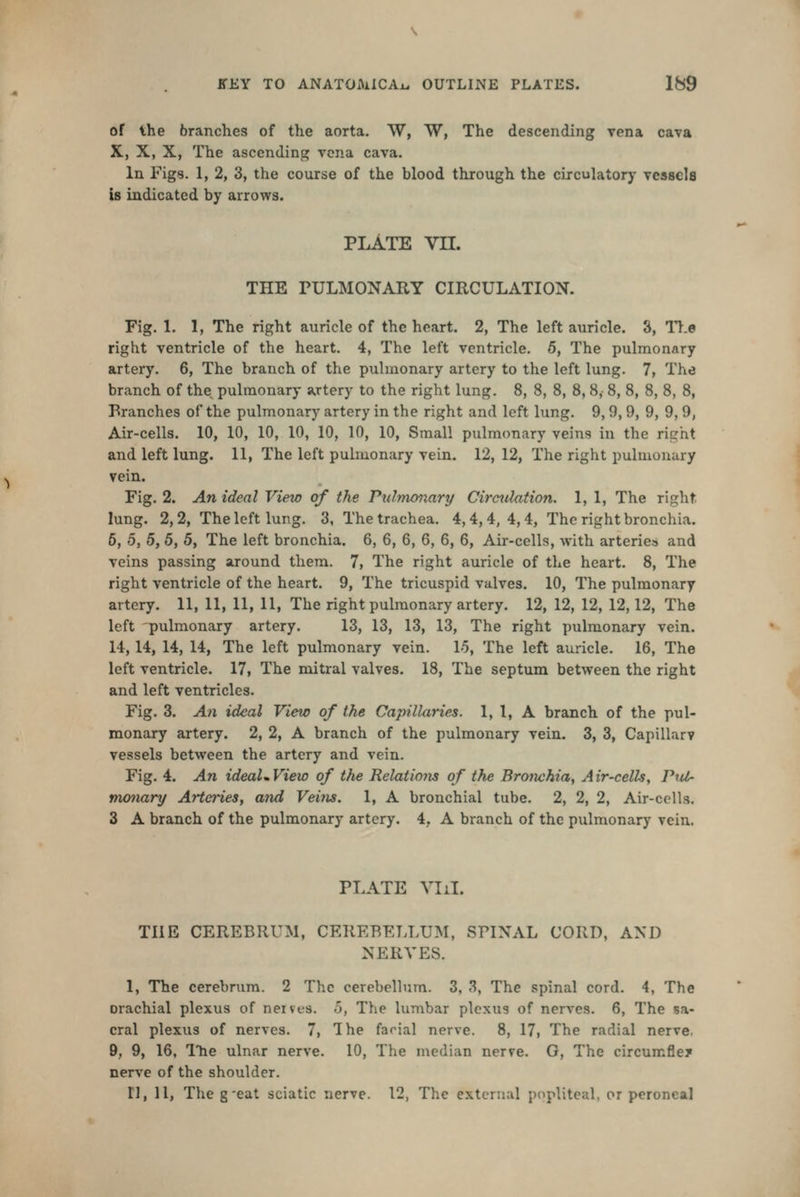

    of the branches of the aorta. W, W, The descending vena cava X, X, X, The ascending vena cava. In Figs. 1, 2, 3, the course of the blood through the circulatory vessels is indicated by arrows. PLATE Vn. THE rULMONARY CIRCULATION. Fig. 1. 1, The right auricle of the heart. 2, The left auricle. 3, ll.e right ventricle of the heart. 4, The left ventricle. 5, The pulmonary artery, 6, The branch of the pulmonary artery to the left lung. 7, The branch of the pulmonary artery to the right lung. 8, 8, 8, 8, 8,- 8, 8, 8, 8, 8, Pranches of the pulmonary artery in the right and left lung. 9,9, 9, 9, 9, 9, Air-cells. 10, 10, 10, 10, 10, 10, 10, Small pulmonary veins in the right and left lung. 11, The left pulmonary vein. 12,12, The right pulmonary vein. Fig. 2. An ideal View of the Pulmo7iari/ Circ^dation. 1,1, The right lung. 2,2, The left lung. 3, The trachea. 4,4,4,4,4, The right bronchia. 6, 5, 5, 5, 5, The left bronchia. 6, 6, 6, 6, 6, 6, Air-cells, with arteries and veins passing around them. 7, The right auricle of the heart. 8, The right ventricle of the heart. 9, The tricuspid valves. 10, The pulmonary artery. 11, 11, 11, 11, The right pulmonary artery. 12, 12, 12, 12,12, The left pulmonary artery. 13, 13, 13, 13, The right pulmonary vein. 14,14, 14, 14, The left pulmonary vein. 1-5, The left auricle. 16, The left ventricle. 17, The mitral valves. 18, The septum between the right and left ventricles. Fig. 3. An ideal View of the Capillaries. 1, 1, A branch of the pul- monary artery. 2, 2, A branch of the pulmonary vein. 3, 3, Capillar? vessels between the artery and vein. Fig. 4. An ideaUView of the Relatiotis of the Bronchia, Air-cells, Pul- monary Arteries, and Veins. 1, A bronchial tube. 2, 2, 2, Air-cells. 3 A branch of the pulmonary artery. 4, A branch of the pulmonarj' vein. PLATE VI il. THE CEREBRUM, CEREBELLUM, SPINAL CORD, AND NERVES. 1, The cerebrum. 2 The cerebellum. 3, 3, The spinal cord. 4, The orachial plexus of neives. 5, The lumbar plexus of nerves. 6, The sa- cral plexus of nerves. 7, Ihe facial nerve. 8, 17, The radial nerve, 9, 9, 16, I'he ulnar nerve. 10, The median ner?e. G, The circumfle? nerve of the shoulder. I], 11, The g-eat sciatic nerve. 12, The external popliteal, or peroneal
