Farm and home mechanics : some things that every boy should know how to do and hence should learn to do in school.

Date:
1911
Catalogue details

Licence: Public Domain Mark

Credit: Farm and home mechanics : some things that every boy should know how to do and hence should learn to do in school. Source: Wellcome Collection.

    40/62 (page 38)

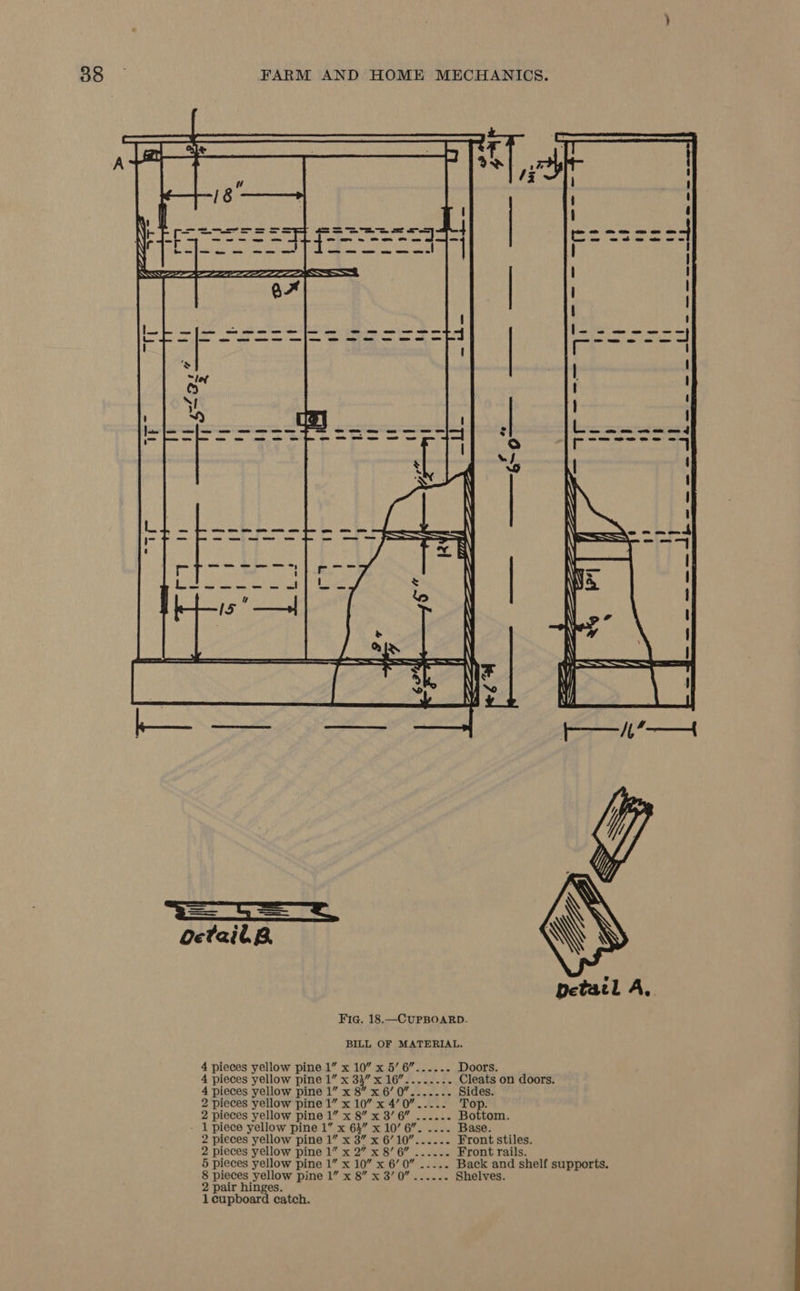

    f--- 18 a? of ‘) 8 io ] Cy ae aoe Laer &Qeme we oe — Mee ees SS ee SS eS ere octailB Fig. 18.—CUPBOARD. BILL OF MATERIAL. 4 pieces yellow pine 1” x 10” x 5’ 6”...... Doors. 4 pieces yellow pine 1” x 33” x 16”........ Cleats on doors. 4 pieces yellow pine 1” x 8” x 6’ 0”....... Sides. 2 pieces yellow pine 1” x 10” x 4’0”..... Top. 2 pieces yellow pine 1” x 8” x 3’ 6” ...... Bottom. - 1 piece yellow pine 1” x 64” x 10’ 6”. .... Base. 2 pieces yellow pine 1” x 3” x 6’10”...... Front stiles. 2 pieces yellow pine 1” x 2” x 8’ 6” ...... Front rails. 5 pieces yellow pine 1” x 10” x 6’ 0” ..... Back and shelf supports. 8 pieces yellow pine 1” x 8” x 3’0”...... Shelves. 2 pair hinges.
