Organisation of air raid casualties services / issued by the Home Office (Air Raid Precautions Department).
- Date:
- 1938
Licence: Public Domain Mark
Credit: Organisation of air raid casualties services / issued by the Home Office (Air Raid Precautions Department). Source: Wellcome Collection.
30/36 page 28

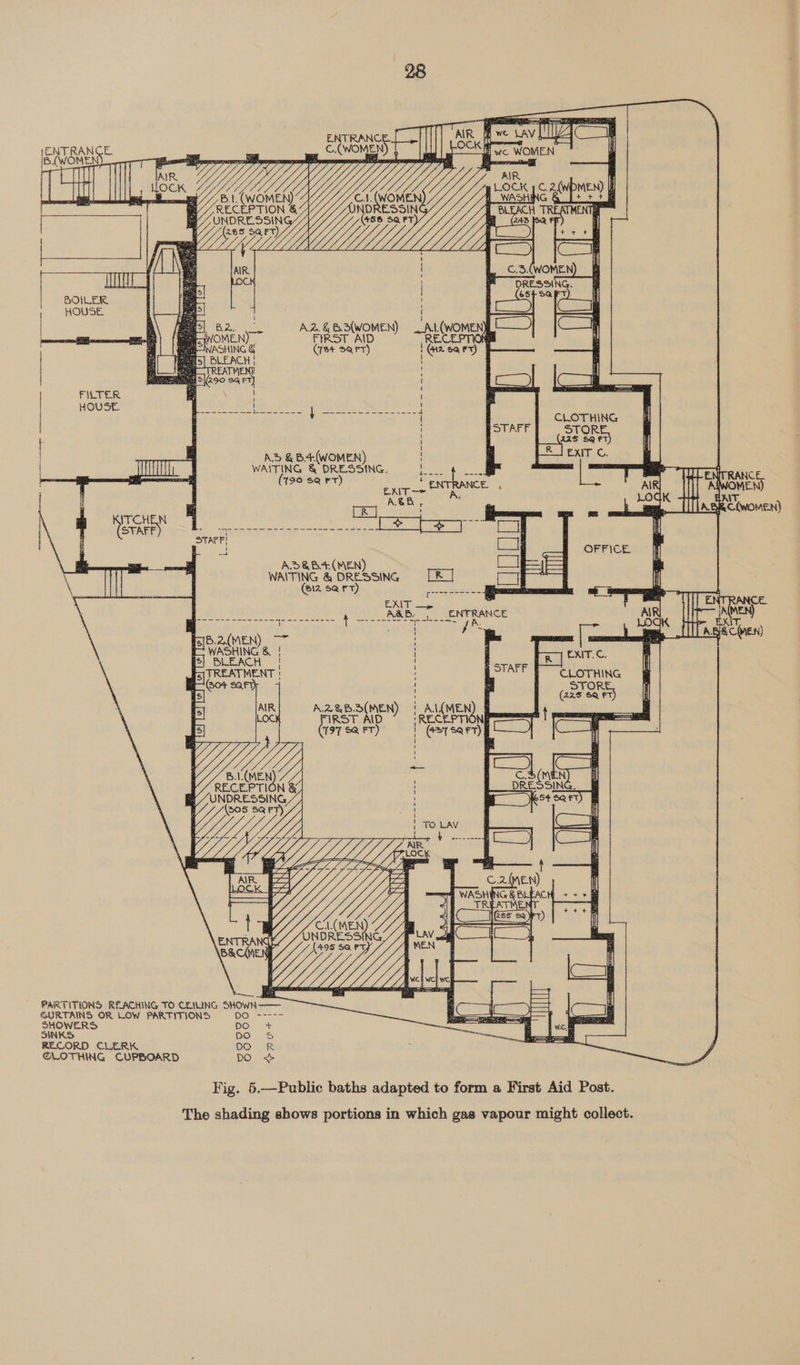

![ral ES fh we SAV vie cH zs ° we - WOMEN ENTRANC C.(WOMEN IS (WOMEN S Gy Bl. (WOMEN) RECEPTION & oy Bet VE ey Yy BOVLER HOUSE aa A.2. & B.3(WOMEN) FIRST AID (73+ SQFT) FILTER HOWE Sait) SUR EEe oem l CLOTHING STOR + | 225 SQ FT 1 Be AD @ B4(WOMEN LR J EXIT C. Jur | WAITING . ee te OS Rass a | = ani 190 SQ FT) , ENT zy cA NITRANCE e. pela i . GE, a ical ITCHEN ae | Deol sd ncaa ay se Rea ec STAFF! OFFICE A2>&B4.(MEN) WAITING & DRESSING [R_] (S12 5@ Ft) porto wine = = = + + ee fe[B.2(MEN) ~~ A&B.) ENTRANCE Lae cauee CLOTHING STO feos sat) A.2.&B.3(MEN) 08 IRST AID eo 197 & FT) (MEN RECEPTION & UNDRESSING (S05 SQFT) C.2(MEN) ; WASHING @ BLEAC TREATME? PARTITIONS REACHING TO CEILING SHOWN—— GURTAINS OR LOW PARTITIONS (fe) eT iz SHOWERS DO + SINKS DOS RECORD CLERK BO We CLOTHING CUPBOARD DO <> — Vig. 5.—Public baths adapted to form a First Aid Post. The shading shows portions in which gas vapour might collect. 2 yen)](https://iiif.wellcomecollection.org/image/b32174779_0030.jp2/full/800%2C/0/default.jpg)
