    177/210 (page 175)

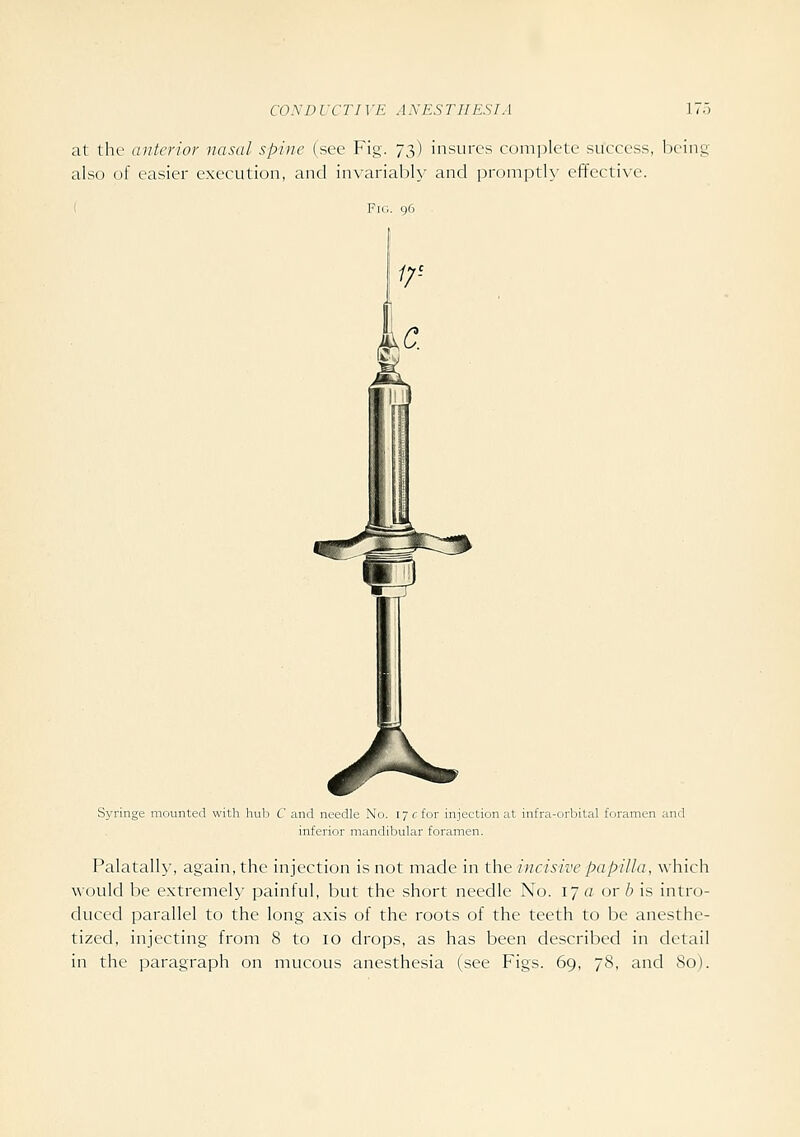

    at ihf (Ulterior nasal spine (see Fig. jt,) insures complete success, being also of easier execution, and invariably and prom])th' effective. ; Fig. go Syringe mounted with hub C and needle No. i ye for injection at infra-orbital foramen and inferior mandibular foramen. Palatally, again, the injection is not made in the incisive papilla, which would be extremely painful, but the short needle No. ij a or b is intro- duced parallel to the long axis of the roots of the teeth to be anesthe- tized, injecting from 8 to lo drops, as has been described in detail in the paragraph on mucous anesthesia (see Figs. 69, /S, and So).
