A new or improved heating stove or furnace with air supply from above / [Johann Lieb].

  • Lieb, Johann.
Date:
1895
Catalogue details

Licence: Public Domain Mark

Credit: A new or improved heating stove or furnace with air supply from above / [Johann Lieb]. Source: Wellcome Collection.

    2/4 page 2

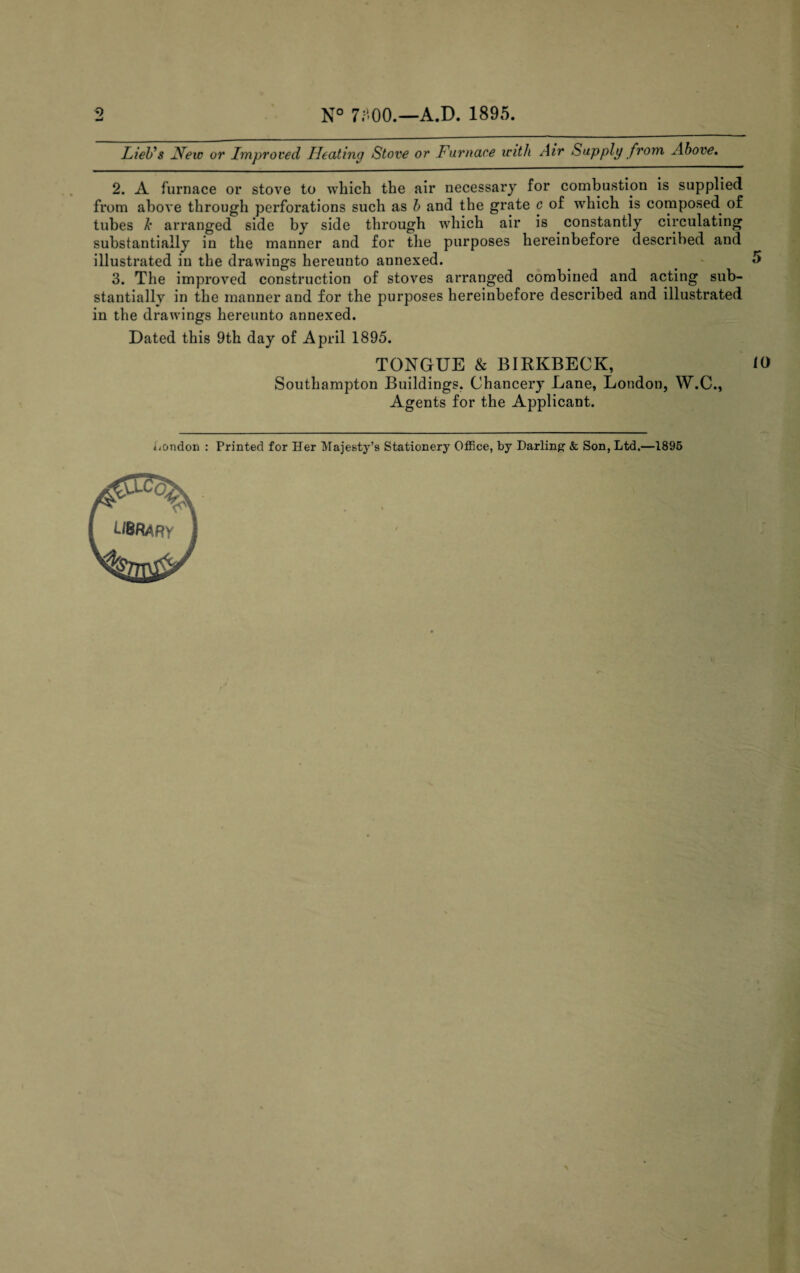

    N° 7;''00.—A.D. 1895. LieUs Hew or Improved Heating Stove or Furnace with Air Supply from Above. 2. A furnace or stove to which the air necessary for combustion is supplied from above through perforations such as b and the grate c of which is composed of tubes k arranged side by side through which air is constantly circulating substantially in the manner and for the purposes hereinbefore described and illustrated in the drawings hereunto annexed. . ** 3. The improved construction of stoves arranged combined and acting sub¬ stantially in the manner and for the purposes hereinbefore described and illustrated in the drawings hereunto annexed. Dated this 9th day of April 1895. TONGUE & BIKKBECK, 10 Southampton Buildings. Chancery Lane, London, W.C., Agents for the Applicant.
    digitised image 1
    digitised image 2
    digitised image 3
