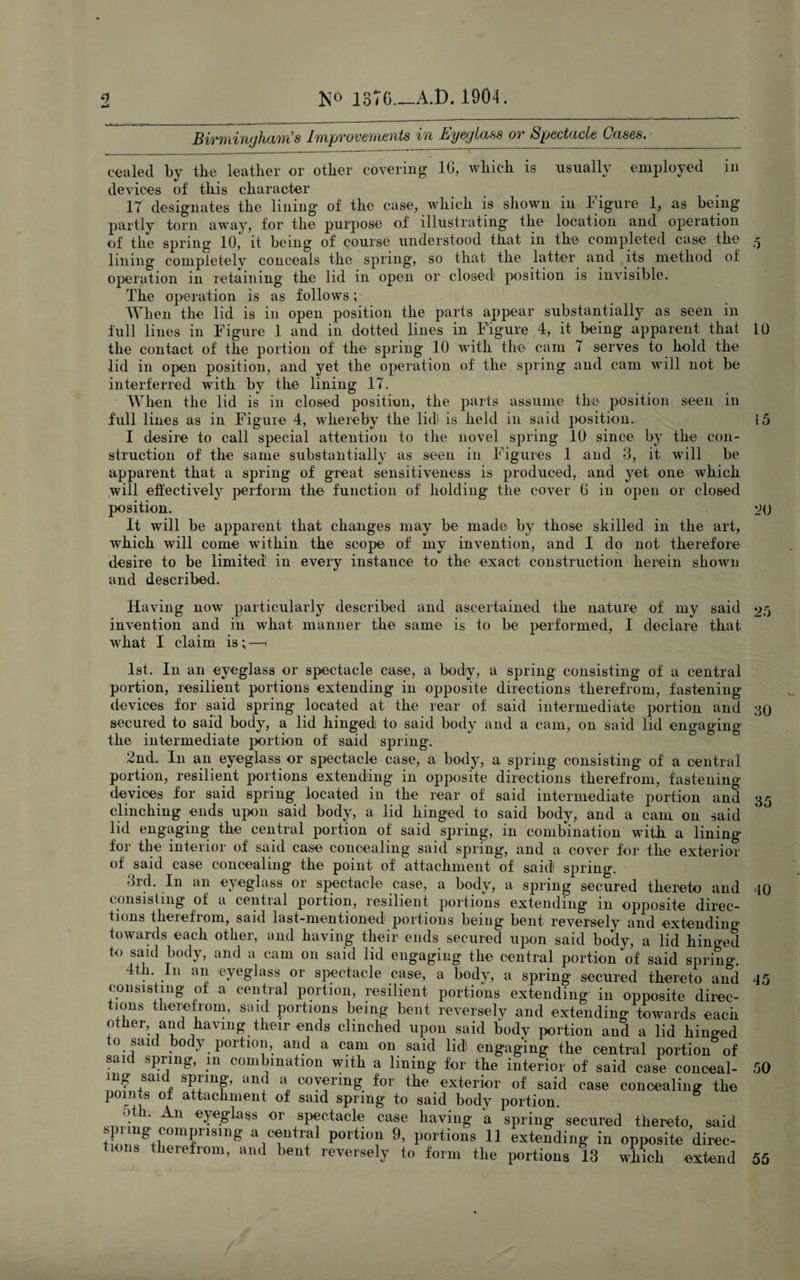

    Sivm'iYi/jhant s Improvements in Eyeglass ov Spectacle Cases. cealed by the leather or other covering 16, which is usually employed in devices of this character 17 designates the lining of the case, which is shown in Figure 1, as being partly torn away, for the purpose of illustrating the location and operation of the spring 10, it being of course understood that in the completed case the 5 lining completelv conceals the spring, so that the latter and its method of operation in retaining the lid in open or closed position is invisible. The operation is as follows; When the lid is in open position the parts appear substantially as seen in full lines in Figure 1 and in dotted lines in Figure 4, it being apparent that 10 the contact of the portion of the spring 10 with the cam 7 serves to hold the lid in open position, and yet the operation of the spring and cam will not be interferred with by the lining 17. When the lid is in closed position, the parts assume the position seen in full lines as in Figure 4, whereby the lidl is held in said position.. i5 I desire to call special attention to the novel spring 10 since by the con¬ struction of the same substantially as seen in Figures 1 and 3, it will be apparent that a spring of great sensitiveness is produced, and yet one which will effectively perform the function of holding the cover 6 in open or closed position. 00 It will be apparent that changes may be made by those skilled in the art, which will come within the scope of my invention, and I do not therefore desire to be limited in every instance to the exact construction herein shown and described. Having now particularly described and ascertained the nature of my said 20 invention and in what manner the same is to be performed, I declare that what I claim is;—1 1st. In an eyeglass or spectacle case, a body, a spring consisting of a central portion, resilient portions extending in opposite directions therefrom, fastening devices for said spring located at the rear of said intermediate portion and 30 secured to said body, a lid hinged to said body and a cam, on said lid engaging the intermediate portion of said spring. 2nd. I11 an eyeglass or spectacle case, a body, a spring consisting of a central portion, resilient portions extending in opposite directions therefrom, fastening devices for said spring located in the rear of said intermediate portion and 35 clinching ends upon said body, a lid hinged to said body, and a cam on said lid engaging the central portion of said spring, in combination with a lining for the interior of said case concealing said spring, and a cover for the exterior of said case concealing the point of attachment of said spring. 3rd. In an eyeglass or spectacle case, a body, a spring secured thereto and 40 consisting of a central portion, resilient portions extending in opposite direc¬ tions therefrom, said last-mentioned portions being bent reversely and extending towards each other, and having their ends secured upon said body, a lid hinged to said body, and a cam on said lid engaging the central portion of said spring 4th In an eyeglass or spectacle case, a body, a spring secured thereto and 45 con sis mg 0 a cential portion, resilient portions extending in opposite direc¬ tions therefrom, said portions being bent reversely and extending towards each other, and having their ends clinched upon said body portion and a lid hinged to said body portion, and a cam on said lid engaging the central portion of said spring, m combination with a lining for the interior of said case conceal- 50 mg said spring, and a covering for the exterior of said case concealing the poims of attachment of said spring to said body portion. oth. An eyeglass or spectacle case having a spring secured thereto, said tun/^+f011^1 lsmg a cential portion 9, portions 11 extending in opposite direc¬ tions therefrom, and bent reversely to form the portions 13 which extend 55
